815-578-9145A02B-0196-B501 Powermate
FANUC parts >> A02B-0196-B501 Powermate
Part Name: Powermate
Part Number: A02B-0196-B501
Exchange Price
$1,208
Need this part? Call for availability. If inventory allows, we will convert an item in stock.
Repair Price
$830

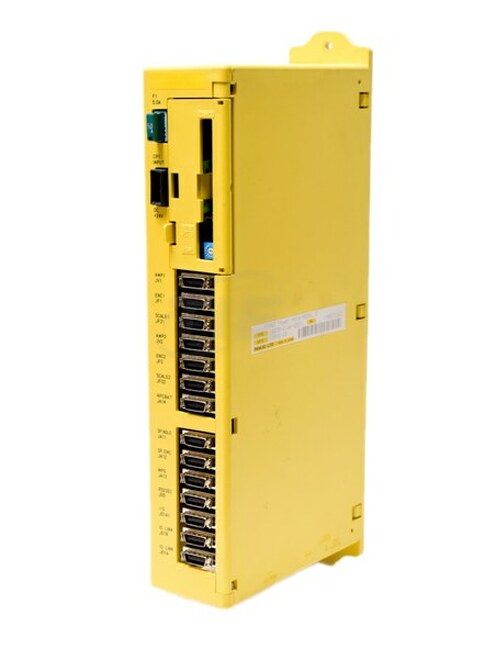

Power Mate A02B-0196-B501
When the FANUC A02B-0196-B501 Power Mate servo drive needs to be replaced, TriStar CNC Services offers prompt repair. If downtime is a concern, you can also opt to exchange your non-working unit for one we’ve already refurbished.
COMPLETE A RETURN MATERIAL AUTHORIZATION (RMA) FORM FOR REPAIRS.
Why TriStar CNC?
TriStar CNC brings over 90 years of collective experience in CNC equipment repair to every job. Unlike some repair centers, we handle all repair and refurbishing work ourselves in our Wisconsin facility—no subcontractors, ever!
Once you’re a TriStar customer, you can take advantage of free, over the phone technical support.
FA
NUC CNC Power Supply Repair and Replacement Services
Every part that enters our shop is thoroughly inspected and cleaned. To get started, fill out an RMA form and send it along with a contact form. We keep spare parts that are ready for exchange so you can keep your operations running while you wait for your repaired part to return. If your part is beyond repair or you need a spare, we offer replacement parts in our shop. Contact us to begin the purchase process.
We also repair other FANUC parts. View our full list of services:
FANUC Servo Alarm Codes
If your A02B-0168-B053 servo is showing an error code, first check our list of FANUC servo alarm codes.
| Alarm Code | Message | Description |
|---|---|---|
|
PSM-5.5 to PSM-11 |
The main circuit power module (IPM) has detected an overload, overcurrent, or control supply voltage decrease, overcurrent, or control supply voltage decrease. Internal cooling circuit failure, Overload, Input supply voltage imbalance, IPM failure, or control supply voltage decrease of the power module. |
|
|
PSM-15 to PSM-55 |
Overcurrent flowed into the input of the main circuit. Input supply voltage imbalance, IGBT defective. |
|
|
N/A |
Internal cooling circuit faulty. |
|
|
N/A |
The temperature of the heat sink has risen. |
|
|
N/A |
DC voltage (DC link) has dropped |
|
|
N/A |
The input power supply is abnormal (open phase) or the main circuit capacitor was not recharged within the specified time. |
|
|
N/A |
The input power supply is abnormal (open phase). |
|
|
N/A |
The DC link voltage is abnormally high. |
|
|
N/A |
The offset of the current detection circuit of the main circuit DC link is excessive. |
|
|
PSMR |
The regenerative discharge unit is heated. |
|
|
N/A |
The main circuit power supply has an open phase. |
|
|
N/A |
The DC link voltage is abnormally high. |
|
|
N/A |
An error occurred in internal parameter data transfer processing. |
|
|
N/A |
The frequency of the main circuit input power supply is abnormal. |
|
|
N/A |
The input power supply of the main circuit has an imbalance. |
|
|
N/A |
When the magnetic contactor is turned on, the phase sequence of the power supply cannot be determined. |
|
|
N/A |
Internal cooling circuit faulty. |
|
|
N/A |
ROM is faulty. |
|
|
N/A |
RAM is faulty |
|
|
N/A |
A program is not operating normally. |
|
|
N/A |
The input power supply is abnormal (open phase). |
|
|
N/A |
The temperature of the regenerative resistor has arisen abnormally |
Additional Repairs
Contact the Fanuc CNC machine specialists at Tri Star CNC Services for repair or exchange of your Power Mate servo drive.
Parts & Repair Warranty Information
Exchange parts and repaired parts include a 1-year warranty. Tri Star CNC, LLC warrants the COMPLETE ASSEMBLY REPAIR – not just the parts and labor.
Call now for FREE phone support
